ATF

ATF INSPECTION PITS

SPECIFICATIONS

​

Minimum Pit Length:

13m, comprising 2x 2.65m long tunnels

​

Jacking Rails:

Twin 150mm x 75mm PFC jacking rails set onto 75x75x6 RSA

​

Tunnels: One tunnel with stairs and one with a ladder.

Both tunnels come with 1850mm long, 25mm thick drive-over plates.

​

Pit Width:

1000mm, Tunnels 820mm, and Stairs 800mm

​

Depth: 1650mm

​

Detachable Section: For installation of pit jack

​

Side Tracks:

Raised side tracks for working platform, 1m long

​

Lighting and Power:

1500mm LED Waterproof bulkhead tube lights, 2x 110v socket, airline with 2x QR take-off points, and 2x termination boxes wired in conduit.

CONSTRUCTION

​

  • Fully braced external walls made of 5mm thick welded recessed steel pressing

  • 6mm thick pressed durbar floor sloping to centre sump with 6mm cover.

  • Externally painted with container paint.

  • Internally painted with two coats of primer and enamel white topcoat.

​

INSTALLATION

​

  • Disposable internal bracing fitted, board covers, and polythene cover.

  • Supplied as bolt-to-base installation or suspended installation.

​

Working Platform:

Braced aluminium checker plate or GRP working platform

​

Warranty:

10-year warranty against water ingress.

​

Certification:

All welders are coded and CSCS certified.

These specifications provide a comprehensive overview of the design and functionality of the ATF Inspection Pits.



If there's anything specific you'd like to delve deeper into, feel free to let us know!

ATF INSPECTION PITS

4 7

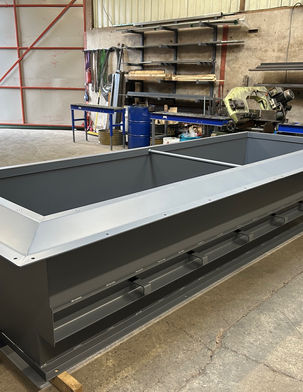

CLASS 4 & 7 INSPECTION PITS

SPECIFICATIONS



Class 4 Inspection Pit:

  • Length: 6 metres

  • Working Length: 4.5 metres

  • Internal Depth: 1650mm

  • Width: Either 820mm or 900mm internally

​

Class 7 Inspection Pit:

  • Length: 7.5 metres

  • Working Length: 6 metres

  • Internal Depth: 1650mm

  • Width: Either 900mm or 1000mm internally



Jacking Rails:

Twin 150mm x 75mm PFC jacking rails set onto 75x75x6 RSA

​

External Walls:

5mm thick welded recessed steel pressing

Floor: 6mm thick pressed durbar floor sloping to centre sump with 6mm cover

​

External Paint:

Two coats of container paint

​

Internal Paint:

Two coats of primer and enamel white topcoat​​

Side Tracks:

Raised side tracks for working platform

​

Lighting and Power:

1500mm LED Waterproof bulkhead tube lights, 1x 110v socket/sockets, airline with 1x QR take-off points, and 2x termination boxes wired in conduit

​

Integral Steel Sump:

With matching floor lid

​

​

INSTALLATION

​

  • Disposable internal bracing fitted, board covers, and polythene cover.

  • Supplied as bolt-to-base installation or suspended installation.

​

Working Platform:

Braced aluminium checker plate or GRP working platform

​

Warranty:

10-year warranty against water ingress.

​

Certification:

All welders are coded and CSCS certified.

These specifications ensure that both the Class 4 and Class 7 Inspection Pits are robust, durable, and built to high standards.



If you need more details or have any other questions, feel free to ask!

CLASS 4 & 7 INSPECTION PITS

MAINTENANCE

MAINTENANCE PITS

SPECIFICATIONS

​

Pit Dimensions:

Customisable length, width, and depth according to the client's specifications

​

Jacking Rails:

Twin 150mm x 75mm PFC jacking rails set onto 75x75x6 RSA

​

Detachable Section:

For installation of pit jack

​

Side Tracks:

Raised side tracks for working platform, 1m long

​

Lighting and Power:

1500mm LED Waterproof bulkhead tube lights, 110v socket, airline with QR take-off points, and 2x termination boxes wired in conduit

CONSTRUCTION

​

  • Fully braced external walls made of 5mm thick welded recessed steel pressing

  • 4.5mm or 6mm thick pressed durbar floor sloping to centre sump with 4.5mm or 6mm cover

  • Externally painted with container paint

  • Internally painted with two coats of primer and enamel white topcoat



INSTALLATION

​

  • Disposable internal bracing fitted, board covers, and polythene cover

  • Supplied as bolt-to-base installation or suspended installation

  • ​

Working Platform:

Braced aluminium checker plate or GRP working platform

​

Warranty:

10-year warranty against water ingress

​

Certification:

All welders are coded and CSCS certified

These specifications ensure that the maintenance pits are robust, customisable, and built to high standards.



If you need more details on any specific aspect or have further questions, feel free to ask!

MAINTENANCE PITS

ASSOCIATED

ASSOCIATED PRODUCTS

  • Commercial brake tester cassettes

  • Commercial vehicle radius plate units and trays

  • Play detector trays

  • Aluminium or steel pit covers

  • Side storage and Hydraulic boxes

  • Lorry ramps

  • Handrails

  • Galvanised recess frames for the lift

ASSOCIATED PRODUCTS
